High Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation System

Product Categories
Xinxiang Risheng Filter Co., Ltd.
Contact Now

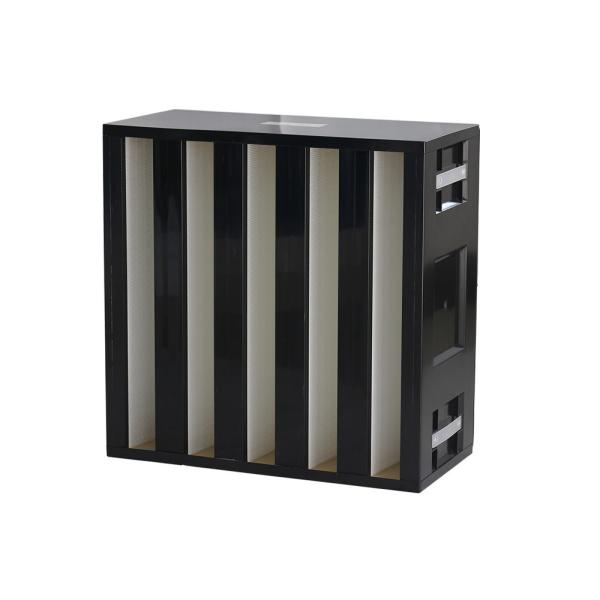

High Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation System

  • 1
  • 2
  • 3

Brand Name : RS

Model Number : WBK

Place of Origin : China

MOQ : 10 Pic

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement

Filtration Grade : Medium Filter

Efficiency : 99%,F8 F9 H10 H13

Porosity : 0.5um

Medium Material : Synthetic Fiber/Glass Fiber

Max. Running Temperature : 70℃

Weight : 5-8Kg

Frame : ABS plastic

Final resistance : 100-250Pa

Initial pressure drop(Pa) : ≤80

Construction : V Bank

Dimension(L*W*H) : Customized Size

Contact Now

Product Description
The compact air filter uses high-quality plastic and galvanized steel or aluminium plate as the frame, and ultra-fine fibre or glass fibre filter paper as the filter material. Its outstanding features are large effective filtering area, low resistance, small space occupied, strong and durable, non-toxic and tasteless, can be used as pre-filter of high-efficiency air filter, thereby prolonging the service life of high-efficiency air filter.
Product Name
Big Flow High Efficiency Air Filter
External Frame
Aluminum alloy / Galvanized sheet
Material
fiberglass
Application
Commercial and industrial, pre-filter air conditioning systems
Efficiency
(EN1822):95%@MPPS(≥99%@0.3um)
H13(EN1822):99.95%@MPPS(≥99.99%@0.3um)
H14(EN1822):99.995%@MPPS(≥99.999%@0.3um)
Operating Temperature
≤70℃
Humidity
≤100%RH
Model
Dimension(mm)
Related Air Flow
Efficiency
width
height
depth
(m³/h&Pa)
WBK-610
610
610
292
3600/240
H13
WBK-305
610
305
292
1800/240
WBK-610-H
610
610
292
3600/180
H10
WBK-305-H
610
305
292
1800/180
Customized design is available

Features:

It is a kind of deep loading high efficiency filter, suitable for permanent or impermanent airflow system. It’s constructed to V-type by multiple mini-pleat media, installed in galvanized box or ABS plastic box. Compared with the common filters, it ideally enlarges the filter area, ensuring low media damage and low energy consumption to save cost in the present installation system.

Applications:
Applied to large air flow ventilation system, filtration system of Pharmaceutical, food, hospitals, clean room etc. It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.

High Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation SystemHigh Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation SystemHigh Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation SystemHigh Efficiency 24x24x12 Air Filter F7 V Bank For Ventilation System
